Are you trying to decide between a Water Pressure Regulator Drip Vs Rainwater Filter for your irrigation setup? You are not alone, these two components solve very different problems, and many drip systems actually need both to run reliably.
This guide explains what each device does, how to match it to your water source, and how to choose the right combination. We evaluated common configurations based on pressure rating, filtration level, connection type, and maintenance needs so you can build a clog-free system in 2026.
If you are starting from scratch, explore our Rainwater & Irrigation hub for more system planning ideas before you buy.
1. Start With Your Water Source and Pressure
Your water source determines whether you need pressure regulation, filtration, or both. City water and well pumps often deliver 40 to 80 PSI, which will blow drip emitters and fittings off the line.
A drip pressure regulator reduces that incoming pressure to a safe 20 to 30 PSI. For example, the LF Brass Drip irrigation Inline Water Pressure model is preset to 20 to 30 PSI and the Raindrip R463CT 3/4-Inch Preset Hose Pressure is set to 25 to 30 PSI, both ideal for hose-threaded drip.
Rainwater collected from a roof or barrel is the opposite problem. It is usually low pressure and gravity fed, so you do not need to reduce pressure, but you do need to remove debris, shingle grit, and organic matter before it reaches emitters. If you run drip from a rain barrel, prioritize filtration first, then add a regulator only if you use a pump.
2. Check Filtration Level and Mesh Size
Not all filters are equal. For drip, look for a 120-mesh stainless steel screen, which is the standard for preventing emitter clogging. The Orbit 67790 1″ MPT 4-in-1 Drip Sprinkler Valve and the Orbit 3 Pack 2-in-1 Drip Irrigation Filter and 30 both use a 120-mesh filter with a top-mounted flush port.
That flush port matters for maintenance. You can rinse the screen without disassembling the whole assembly. Inline Y filters like those in the Aurelema 2 Pack Drip Irrigation System Kit offer a larger filter area and a visible mesh screen, which helps when your rainwater carries more sediment.
Simple screened washers, like the one included with the LF Brass regulator, catch larger debris but are not a substitute for a true drip filter if you use rainwater or well water. For cleaner city water you may get by with a regulator plus washer, for rainwater you want a dedicated filter stage.
3. Match Connection Type to Your System
Connection type is where many buyers get stuck. Hose-threaded regulators with 3/4 inch GHT fittings screw directly onto a faucet, garden hose, or hose bib. They are perfect for small, faucet-fed drip kits and portable setups.
Valve-threaded combos with 1 inch MPT threads are designed to attach to an irrigation valve or manifold. The Orbit 4-in-1 and 2-in-1 units thread directly onto a 1 inch FPT valve and include a built-in Drip-Lock adapter for 17mm or 0.700 inch distribution tubing, creating a compact control zone that fits in a standard valve box.
Think about future expansion as well. If you plan to automate zones with a controller, a valve-based filter and regulator keeps wiring and plumbing tidy. For more ideas on integrating drip with garden beds, see our Garden & Greenhouse resources.
4. Consider Flow Rate and System Size
Every regulator has a flow range where it holds pressure steady. The Aurelema kit lists a working range of 1.9 to 57 LPM with a constant 25 PSI output, while the Orbit 4-in-1 is rated to 10 GPM at 30 PSI and the 2-in-1 version to 5 GPM at 30 PSI.
For a single raised bed or patio container line, a low-flow inline regulator is enough. For multiple zones or long runs of drip tape, you need higher flow capacity and a filter that will not restrict volume. Undersizing creates uneven watering and weak emitter output at the end of the line.
5. Evaluate Durability and Maintenance
Material choice affects lifespan. Lead-free brass bodies, like the Pronese LF Brass regulator, resist rust and handle outdoor exposure better than basic plastic. The Aurelema kit adds a metal connector between the backflow preventer and regulator to address wear on plastic threads over time.
For rainwater systems, choose a filter you will actually clean. Stainless steel mesh with a flush cap or Y-filter design is easier to service than a sealed unit. Kits that include extra washers and Teflon tape, or a complete RV-style kit with a carrying case like the RV Fresh Water Kit – RV Water Pressure Regulator bundle, also simplify seasonal storage and leak repairs.
A Few Picks Worth Considering
Below are a few representative examples that show the main approaches, from simple hose regulators to combined valve, filter, and regulator zones. We selected them to illustrate different water sources and installation styles, not as an exhaustive ranking.
This article contains affiliate links. If you buy through one of our links, The Yardstead may earn a commission at no extra cost to you. Commissions never influence which products we recommend or how we rank them. Read our Affiliate Disclosure for details.
Quick Picks at a Glance
Prime Pronese Brass Drip Irrigation Pressure Regulator
Prime rVandtt All-in-One RV Fresh Water Kit
Prime Orbit 67790 4-in-1 Drip Irrigation Valve
Prime Orbit 67798 3-Pack 2-in-1 Drip Irrigation Filter
Prime Raindrip R463CT 3/4-Inch Pressure Regulator 25-30
Prime Aurelema 2-Pack 25 PSI Drip Irrigation Kit
As an Amazon Associate we earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated.
Pros
- Durable lead-free brass that is CSA and NSF compliant and longer lasting than plastic
- Maintains consistent low pressure even with high inlet pressure and flow rates
- Stops leaks and water hammer clunking reported by users at the faucet connection
- Universal 3/4 inch GHT fit for quick installation on garden hoses and spigots
- Screened washer helps prevent clogging in drip lines and emitters
Cons
- Fixed 20 to 30 PSI output is not adjustable for systems needing different pressure
- May reduce flow volume too much for large or multi-zone irrigation setups
- Heavier and bulkier than lightweight plastic regulators
The Pronese LF2030 is an inline brass water pressure regulator designed to bring high pressure faucet water down to a drip safe 20 to 30 PSI. It is built for home gardeners, raised bed growers, and RV or camper users who rely on drip lines and soaker hoses that can burst under city water pressure.
In real world use, it delivers a steady, regulated flow that protects emitters and tubing from damage. Users report it eliminates leaks at the faucet connection, stops irritating pipe clunking from timer cycling, and performs reliably even when inlet pressure and flow are high, unlike vented plastic reducers.
Build quality is a clear step up from plastic alternatives. The lead-free brass body is rust resistant, compliant for drinking water safety, and feels solid for years of outdoor use. The 3/4 inch GHT threads connect to any standard garden spigot or hose, and the included screened washer helps trap debris before it reaches your drip system.
The main drawback is that pressure is fixed, so you cannot fine tune it for specific needs. Some owners with large or segmented watering systems found the flow volume lower than expected compared to plastic regulators, which may require rotating zones or adjusting your layout.
Overall, this is a well made, affordable upgrade for anyone frustrated by leaking or noisy drip systems. If you want a safe, durable and easy to install regulator that just works without venting or fuss, the Pronese brass model is an excellent choice for small to medium drip irrigation setups.
Brand: Pronese, Model: Pronese-LF2030, Material: Lead-Free Brass with Brass exterior finish
Pressure Rating: Regulates to 20 to 30 PSI, Maximum Operating Pressure: 30 PSI, Valve Type: Pressure regulator valve
Connections: 3/4 inch GHT inlet and outlet, Thread Type: Threaded, Inlet and Outlet Size: 0.75 inches
Certifications: CSA, NSF, ULC compliant for drinking water fixtures, Includes: 1 regulator, 2 silicone gaskets, Teflon tape
Pros
- Comprehensive kit covers all essential fresh water connection needs
- Protects RV plumbing with adjustable pressure control and gauge
- Improves water quality by reducing chlorine, taste and odor
- Durable brass components and organized hard case for storage
- Highly rated by RV owners for convenience and quality
Cons
- Inline filter housing is plastic and can crack if mishandled or frozen
- Filter cartridge requires periodic replacement with ongoing cost
- Kit does not include a drinking water hose, which must be purchased separately
The rVandtt RV Fresh Water Kit is an all-in-one solution designed to get you connected to campground water quickly and safely. It is built for new RV owners, travel trailer users and anyone who wants a single, organized kit instead of buying parts separately.
Standout features include an adjustable water pressure regulator with gauge and a multi-stage inline filter that uses activated carbon to reduce chlorine, odors and sediment. In real world use, owners report stable pressure, better tasting water and easy setup with no adjustment needed on first use.
Build quality is a strong point, with solid brass fittings, elbow, splitter and quick connects that feel durable and resist leaks. The entire set packs neatly into a hard carrying case that saves space in your pass through storage and keeps everything protected between trips.
There are a few drawbacks to consider. The plastic filter housing needs careful handling and winterization to avoid cracks, and the filter itself is a consumable that will need replacing. You will also need to supply your own fresh water hose, as one is not included.
Overall, this kit delivers excellent convenience, protection and value for RVers who want peace of mind at the spigot. If you want a reliable, field tested bundle that covers pressure management and filtration in one purchase, it is an easy recommendation.
This kit includes an adjustable brass water pressure regulator with gauge, multi-stage inline water filter, hose splitter, brass elbow, flexible connector, hose quick connects and a leak repair kit.
All components store inside the included hard carrying case for organized transport and protection. The case measures 15.5 inches by 13.25 inches by 4 inches and keeps everything ready for your next trip.
Brand: rVandtt, Model Number: 00850028494196, Material: Brass fittings with activated carbon filtration.
Purification Method: Activated carbon, Special Features: Chlorine reduction and water pressure management, Supports TDS up to 1000 PPM.
Installation Type: Freestanding, Power Source: Adapter, Item Weight: 3.09 kg, Package Type: Hard carrying case.
Pros
- All-in-one design saves space, fittings and installation time
- Easy to service jar-top valve with manual lever and bleed screw
- Effective filtration and consistent pressure regulation for reliable drip performance
- Compact footprint enables clean multi-zone manifold installations
Cons
- Can be a tight fit when retrofitting into existing valve boxes
- May discharge water from bleed hole when mounted vertically after each cycle
- Occasional reports of valve not fully closing if debris is present or threads are over tightened
The Orbit 67790 is a 4-in-1 drip control zone that integrates an automatic jar-top valve, stainless steel filter, pressure regulator and drip tubing adapter into one compact body. It is designed for homeowners and landscapers building efficient micro-watering systems that need clean, low pressure water.
In real world use, it delivers consistent 30 PSI regulation at flows up to 10 GPM while the 120-mesh filter protects emitters from clogging. Users report clean, leak free installs and easy multi-zone setups, especially when mounting several units side by side in a single valve box.
Build quality centers on a serviceable jar-top valve with a 24 VAC solenoid, manual lever and bleed screw for easy operation and maintenance. The stainless steel filter includes a top flush port for quick cleaning, and the Drip-Lock adapter securely connects to 17mm drip distribution tubing.
The compact design can still be tight to retrofit into existing valve boxes, and vertical mounting may cause minor water discharge from the bleed hole after each cycle. A small number of users have reported valves that fail to fully close, often linked to debris or over tightening of threaded PVC connections.
Overall, the Orbit 67790 is a smart, space saving solution that simplifies drip irrigation installation and maintenance. For anyone planning a new drip system or upgrading from separate components, it offers reliable performance and excellent compatibility with major 24 VAC controllers.
Model 67790 features 1-inch male pipe thread inlet and outlet, 30 PSI regulation up to 10 GPM, and a Drip-Lock outlet for 17mm or .700-inch drip blank tubing. Dimensions are 9.5 x 3.1 x 5.7 inches and weight is 1.4 pounds.
Construction includes a stainless steel filter element, stainless steel exterior finish, and threaded NPT connections. The valve type is jar-top with a 24 VAC solenoid for use with standard irrigation controllers including B-hyve smart controllers.
Intended for outdoor cold water irrigation use, the unit operates as a complete drip control zone without needing separate filter or regulator components.
Pros
- Combines three components into one compact, leak-resistant unit
- Maintains steady 30 PSI and 5 GPM flow for optimal drip performance
- Tool-free top flush port makes filter cleaning fast and simple
- Straight design installs easier and fits better in standard valve boxes than angled models
- Universal compatibility with common drip tubing sizes and brands
Cons
- Requires 1-inch FPT valve, not compatible with 3/4-inch systems without an adapter
- Fixed 30 PSI output is not adjustable for specialty low or high pressure needs
- 3-pack quantity may be more than needed for small single-zone projects

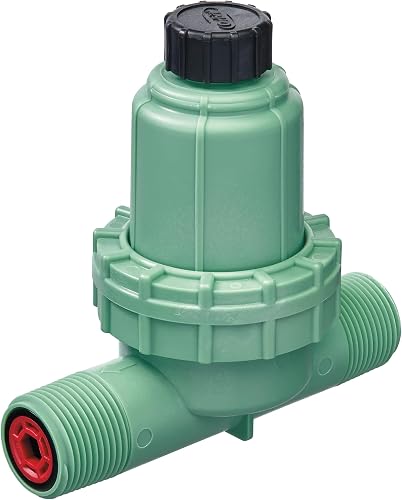

The Orbit 67798 3-Pack is a 2-in-1 drip irrigation solution that combines a filter and 30 PSI pressure regulator with a built-in Drip-Lock adapter. It is designed for homeowners and irrigation pros converting standard 1-inch sprinkler valves into efficient drip systems.
In real world use, the straight-through design delivers consistent pressure at 5 GPM while reducing leak points compared to multi-piece assemblies. The 120-mesh stainless steel filter protects emitters from clogging, and the top-mounted flush port lets you clean it quickly without tools or disassembly.
Build quality is a clear strength, with heavy-duty construction and stainless steel filter elements made for long term outdoor durability. The compact straight body fits neatly in standard rectangular valve boxes, making installation and future maintenance much easier than bulky angled alternatives.
There are a few limitations to consider. The 1-inch MPT connection requires a matching FPT valve, so 3/4-inch systems will need an adapter, and the fixed 30 PSI output is not adjustable for specialty applications. Buying three units at once is great value for multi-zone systems but may be excess for a single small bed.
Overall, this Orbit 3-pack offers a professional, time-saving upgrade for any drip conversion project. If you want reliable pressure control, superior filtration and universal tubing compatibility in one leak-resistant unit, it is an excellent choice.
Model: Orbit 67798 (3-Pack)
Function: 2-in-1 Filter and 30 PSI Pressure Regulator with Drip-Lock Adapter
Filter: 120-Mesh Stainless Steel with Top-Mounted Flush Port
Connection: 1-inch MPT Inlet to 1-inch FPT Valve, Drip-Lock Outlet for 17mm and 0.700 inch Tubing
Flow and Pressure: 5 GPM Flow Rate, Regulated to 30 PSI
Material and Weight: Stainless Steel and Heavy-Duty Plastic, 1.8 pounds total
Pros
- Effectively prevents emitters and fittings from popping off under high pressure
- Simple, tool-free installation with standard garden hose threads
- Compact, lightweight and UV-treated for durable outdoor use
- Quiet operation with reliable low flow for drip and micro sprayers
- Backed by Raindrip's 1-year satisfaction guarantee
Cons
- Requires a separate 3/4 inch FHT adapter for supply tubing, not included
- Some users report leaking at the hose connection or inconsistent pressure regulation
- Plastic ABS construction is less durable than brass regulators for heavy duty use
The Raindrip R463CT is a preset hose pressure regulator designed to solve one of the most common drip irrigation problems, excessive faucet pressure. It is built for homeowners, gardeners and landscapers who run low pressure drip or micro irrigation systems directly from an outdoor spigot.
Preset to 25 to 30 PSI, it automatically reduces incoming water pressure to a safe level for drip tubing, emitters and fittings. In real world use, it helps prevent blowouts, popping fittings and timer damage, while maintaining steady low flow for sprayers and emitters without manual adjustment.
The regulator features standard 3/4 inch FHT by MHT connections that thread directly onto most outdoor faucets and hose bibbs. Made from high impact ABS plastic with UV inhibitors, it is lightweight at just 1.6 ounces, compact and built to handle outdoor exposure while remaining easy to install and remove.
It is not without flaws. The unit requires a separate 3/4 inch FHT adapter to connect to supply tubing, which is sold separately. A few users have reported leaking at the hose end connection or inconsistent regulation, sometimes needing plumbers tape or putty for a tight seal, and the plastic build is not as robust as brass alternatives.
Overall, the Raindrip R463CT is an affordable and essential safeguard for any drip system. If you want to protect your tubing, extend the life of your components and ensure consistent performance, this simple preset regulator is a smart and reliable investment.
Model: Raindrip R463CT (100050142)
Connections: 3/4 inch FHT x 3/4 inch MHT
Preset Pressure: 25 to 30 PSI
Maximum Pressure: 30 PSI
Material: High-impact ABS plastic with UV inhibitors
Weight: 1.6 ounces
Dimensions: 7 x 5 x 6 inches
Valve Type: Pressure Relief Valve
Included Components: 1 Pressure Regulator
Warranty: 1-year 100 percent satisfaction guarantee
Pros
- Includes two complete sets with regulator, Y filter and backflow preventer for excellent value
- Stable 25 PSI regulation protects drip tubing and emitters from high pressure damage
- Large area Y filter with mesh screen reduces clogging and maintenance
- Metal connector improves durability versus all plastic kits
- Universal 3/4 inch compatibility fits most standard garden faucets and hoses
Cons
- ABS plastic housings may degrade with prolonged UV and outdoor exposure
- Instructions use confusing terminology and reference a pressure gauge that is not included
- Requires checking flow rate compatibility, not ideal for very low or very high flow systems
The Aurelema 2-Pack Drip Irrigation Pressure Regulator Kit is an all in one head assembly for garden drip systems, bundling a 25 PSI regulator, Y filter and backflow preventer for each set. It is designed for homeowners and gardeners who want to run drip lines directly from a standard outdoor faucet without overpressurizing emitters.
In use, the regulator holds a steady 25 PSI output across a wide 1.9 to 57 LPM flow range, which helps deliver even watering and prevents blowouts. The Y filter with its internal mesh screen does an effective job of trapping sediment and debris, reducing clogged drippers and extending the life of the entire system.
Build quality is practical for outdoor use, combining ABS plastic bodies with a key metal connector at the high stress joint between regulator and backflow preventer. The 3/4 inch garden hose threads are standard and seal well when hand tightened, and the compact inline shape keeps the assembly neat at the faucet.
There are a few limitations to note. The plastic filter and regulator housings can become brittle after long term UV exposure, so shade or seasonal storage helps longevity. The included instructions use confusing terminology and reference a pressure gauge that is not included, so first time installers should verify flow compatibility before connecting.
Overall, this kit offers strong value for anyone setting up one or two drip zones on a budget. If you need reliable pressure control and filtration with universal faucet compatibility and appreciate having a second kit as a backup, it is a solid and convenient choice.
Brand: Aurelema, Model: MJO-Aurelema-1003, Quantity: 2 Pack includes 2 regulators, 2 Y filters, 2 backflow preventers and metal connectors
Pressure Rating: 25 PSI (1.72 bar), Flow Range: 1.9 to 57 LPM, Maximum Pressure: 25 PSI, Control Type: Pressure Control
Connection: 3/4 inch Garden Hose Thread inlet and outlet, Style: Inline, Fit Type: Universal faucet, hose and manifold
Materials: Metal connector plus ABS plastic, Filter Type: Y shaped inline with internal mesh screen
Dimensions: Regulator 7.6 x 2.25 x 2.25 inches, Filter 6.5 inches long, Package 7.87 x 5.51 x 5.31 inches, Weight: 2 pounds
Common Mistakes to Avoid
One common mistake is using only a pressure regulator with collected rainwater. You will still get clogged emitters because the regulator does not remove fine sediment. If your source is a barrel, cistern, or roof, install a proper mesh filter before the regulator and flush it regularly.
Another pitfall is mismatching threads and pressure. A 3/4 inch hose regulator will not thread directly onto a 1 inch irrigation valve without an adapter, and a 25 PSI preset may be too low for pressure-compensating emitters that expect 30 PSI. Always confirm your emitter spec and valve size before you order.
Finally, do not install a regulator backwards or skip the backflow preventer. Many kits, like the Aurelema 2 Pack, include a backflow device for a reason. It protects your household water, and installing any component in the wrong direction will restrict flow or damage the diaphragm. If you are building out beds this September, our best raised garden bed galvanized for backyard guide can help you plan layout so your pressure and filtration choices match the bed size.
Frequently Asked Questions
Do I need a pressure regulator if I use rainwater for drip irrigation?
Usually no, if your rainwater is gravity fed from a barrel. Gravity systems are already low pressure, so filtration is the priority. You only need a regulator if you add a pump that pushes pressure above 30 PSI.
Can a rainwater filter replace a drip pressure regulator?
No, they do different jobs. A filter removes particles that clog emitters, while a regulator lowers water pressure to protect tubing and fittings. For city water fed drip, you need both, which is why combo units like the Orbit 4-in-1 are popular.
What PSI should my drip pressure regulator be set to?
Most drip systems run best at 25 to 30 PSI. Preset regulators at 25 PSI or 30 PSI cover nearly all drip tape and emitter lines. Check your emitter documentation, then choose a regulator that holds that pressure across your expected flow rate.
Still comparing filtration options for stored rainwater?
See our full picks in best rainwater filter 55 gallon to match filter capacity to barrel size, and browse our Composting & Soil Health section if you reuse that water in edible beds.
These picks are not a good fit for large agricultural irrigation needs; they are sized for home garden and backyard use.
